Virtual desktop in Docker + Internet browser access



Now I really no longer need a VPN tunnel to my own home network: A desktop infrastructure (CDI) allows me to access a virtual Linux workspace in my own network directly from a browser: Provided via a container.

Docker Basics

Docker allows applications to be launched by command in a so-called container.
A container is an isolated environment independent of the operating system (OS):
When a container is first launched, Docker independently loads all the necessary sources
from the internet.
Docker can be installed on Windows, macOS or an Linux Distribution

A simple docker run command is enough to start and the desktop can be reached via the browser with port 6901:

sudo docker run --rm -it --shm-size=512m -p 6901:6901 -e VNC_PW=password kasmweb/desktop:1.15.0

To ensure that Kasm Desktop is can be reached securely from the Internet, I use a Let's Encrypt reverse proxy. At first I used Nginx as Reverse-Proxy, but later replaced it with Traefik. The reverse proxy provides an encrypted HTTPS connection and makes it possible to run multiple websites on one server.

Step by step Kasm Desktop and Docker including access from the internet

Hardware requirement:
  1. Almost any hardware can be used for the Docker installation. For example, a virtual server of a provider, or for home: a Mini-PC, notebook, MAC, a NAS: QNAP, Synology or any other hardware with x68-64 architecture on which Windows or Linux can be installed.

Schematic representation: Access from the Internet
Internet access requirements:
  1. Own registered domain, see domain and its management.
  2. Cloudflare or Reverse Proxy:
    1. Cloudflare Tunnel Service
    2. or alternatively:
    3. Port forwarding and Reverse proxy with Let's Encrypt certificate
    see also: Cloudflare or Reverse Proxy
Since the container presented here uses https with a self-signed certificate, Traefik requires the following additional option as a prerequisite:
      - '--serverstransport.insecureskipverify'


Docker-Compose YAML with access via the Internet

version: "3.8"
services:
  kasmweb:
    image: kasmweb/desktop:1.15.0
    #Labels für ReverseProxy, siehe: https://www.libe.net/traefik
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.workspace.rule=Host(`workspace.domain.tld`)"
      - "traefik.http.routers.workspace.entrypoints=web"
      - "traefik.http.routers.workspace.entrypoints=websecure"
      - "traefik.http.routers.workspace.tls=true"
      - "traefik.http.routers.workspace.tls.certresolver=myresolver"
      - "traefik.http.services.workspace.loadbalancer.server.scheme=https"
      - "traefik.http.services.workspace.loadbalancer.server.port=6901"
      - "traefik.http.routers.workspace.middlewares=forward-auth-verify"
    volumes:
      - ./profile:/home/kasm-user
    shm_size: '1g'
    restart: always
    environment:
      - VNC_PW=password
    expose:
      - "6901"
    #Für einen direkten Test-Zugriff, in den folgenden 2 Zeilen "#" entfernen. Aufruf: http://localhost:83 oder http://ServerIP:83
    ports:
      - "6901:6901"

#Ohne dem Einsatz eines Reverse Proxy (https://www.libe.net/traefik) fehlt voraussichtlich das Netzwerk webproxy
#und die folgenden Zeilen können entfernt oder auskommentiert werden. Alternativ kann das Netzwerk mit "docker network create webproxy" erstellt werden
networks:
  default:
    external:
      name: webproxy

The file does not use volumes, but subfolders below the docker-compose.yml file. See: Storing Docker data: Docker volumes vs. host folders. In addition to the user name and password, I use a Google account login to access the file from the Internet. A separate middleware is responsible for this, which is interposed via the label: "traefik.http.routers.workspace.middlewares=forward-auth-verify". See: Traefik and oAuth: Log in your own web services with Google.

Start - docker compose up

In the example, the profile data is redirected to a persistent folder. As a prerequisite, this must be created before the actual start:

mkdir profile
sudo chmod 777 ./profile/ -R
docker compose up -d

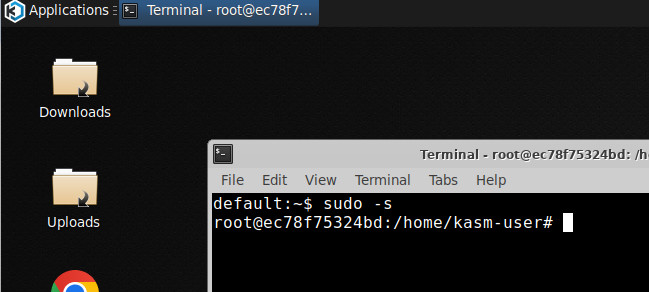

Root permissions

In order to be able to switch to the root account in the desktop without a password, I have extended the Docker image as described in the documentation:

additional file: Dockerfile (without extension), content:

[+]
FROM kasmweb/desktop:1.15.0
USER root

ENV HOME /home/kasm-default-profile
ENV STARTUPDIR /dockerstartup
ENV INST_SCRIPTS $STARTUPDIR/install
WORKDIR $HOME

######### Customize Container Here ###########

RUN apt-get update \
    && apt-get install -y sudo \
    && echo 'kasm-user ALL=(ALL) NOPASSWD: ALL' >> /etc/sudoers \
    && rm -rf /var/lib/apt/list/*

######### End Customizations ###########

RUN chown 1000:0 $HOME
RUN $STARTUPDIR/set_user_permission.sh $HOME

ENV HOME /home/kasm-user
WORKDIR $HOME
RUN mkdir -p $HOME && chown -R 1000:0 $HOME

USER 1000

Source:

The customized image can then be used for the build / start in the docker-compose.yml file:

Contents docker-compose.yml file:

[+]
version: "3.8"
services:
  kasmweb:
    container_name: kasmweb-desktop
    build:
      context: ./
      dockerfile: Dockerfile
    #Labels für ReverseProxy, siehe: https://www.libe.net/traefik
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.workspace.rule=Host(`workspace.domain.tld`)"
      - "traefik.http.routers.workspace.entrypoints=web"
      - "traefik.http.routers.workspace.entrypoints=websecure"
      - "traefik.http.routers.workspace.tls=true"
      - "traefik.http.routers.workspace.tls.certresolver=myresolver"
      - "traefik.http.services.workspace.loadbalancer.server.scheme=https"
      - "traefik.http.services.workspace.loadbalancer.server.port=6901"
      - "traefik.http.routers.workspace.middlewares=forward-auth-verify"

    shm_size: '1g'
    restart: always
    volumes:
      - ./profile:/home/kasm-user
    environment:
      - VNC_PW=???
    expose:
      - "6901"
    #Für einen direkten Test-Zugriff, in den folgenden 2 Zeilen "#" entfernen. Aufruf: http://localhost:83 oder http://ServerIP:83
    ports:
      - "6901:6901"

#Ohne dem Einsatz eines Reverse Proxy (https://www.libe.net/traefik) fehlt voraussichtlich das Netzwerk webproxy
#und die folgenden Zeilen können entfernt oder auskommentiert werden. Alternativ kann das Netzwerk mit "docker network create webproxy" erstellt werden
networks:
  default:
    external:
      name: webproxy

Possible clients

In addition to well-known Linux distributions such as Debian, CentOS, Kali, Fedora or Ubuntu, there are also customized images for launching specific applications such as Gimp, Blender, Inkscape, LibreOffice or for loading a specific browser: e.g. Chrome, Chromium, the Tor browser or Edge. The complete client list can be found on the manufacturer's website: https://www.kasmweb.com/docs/latest/guide/custom_images.html

To use Debian, for example, only the image in the Docker-compose file needs to be replaced:

version: "3.8"
services:
  kasmweb:
    ..
    image: kasmweb/debian-bookworm-desktop:1.15.0
    ..

Or when using the Dockerfile, the From command at the beginning of the Dockerfile:

FROM kasmweb/debian-bookworm-desktop:1.15.0
...

Conclusion

As an alternative to VPN access and a remote connection to an existing physical or virtual client, a CDI (Container Desktop Infrastructure) can be used to enable access to a desktop interface within your own network. Compared to virtual servers or clients, a container-based desktop is more resource-efficient and can therefore be operated quickly on hardware that may already be available. See also: Inexpensive and economical Docker Mini Server for the home.
