OpenWRT - Display bandwidth of individual devices (monitor)
Most routers show an overview of all connected devices, some show a snapshot of the bandwidth used, but hardly any give an overview of the amount of data consumed over a certain period of time and certainly not by which device it was consumed. To make the consumed bandwidth a bit more transparent, I was looking for a way to historically record the bandwidth per device. The firmware of normal routers hardly offer a possibility here, differently when using an open source firmware, for example OpenWRT, see: Alternative Router Firmware: OpenWrt and no longer DD-WRT.
OpenWRT
OpenWRT is OpenSource software and can be customized as desired, whereby numerous supporters have published various extensions. Practically, however, I have not been able to find a perfect package for bandwidth monitoring for the LEDE web interface: The available software packages for OpenWRT do not always integrate with its web interface and feel a bit outdated. Nevertheless, the extensions presented here provide a good overview of the consumed bandwidth:
bandwidthd

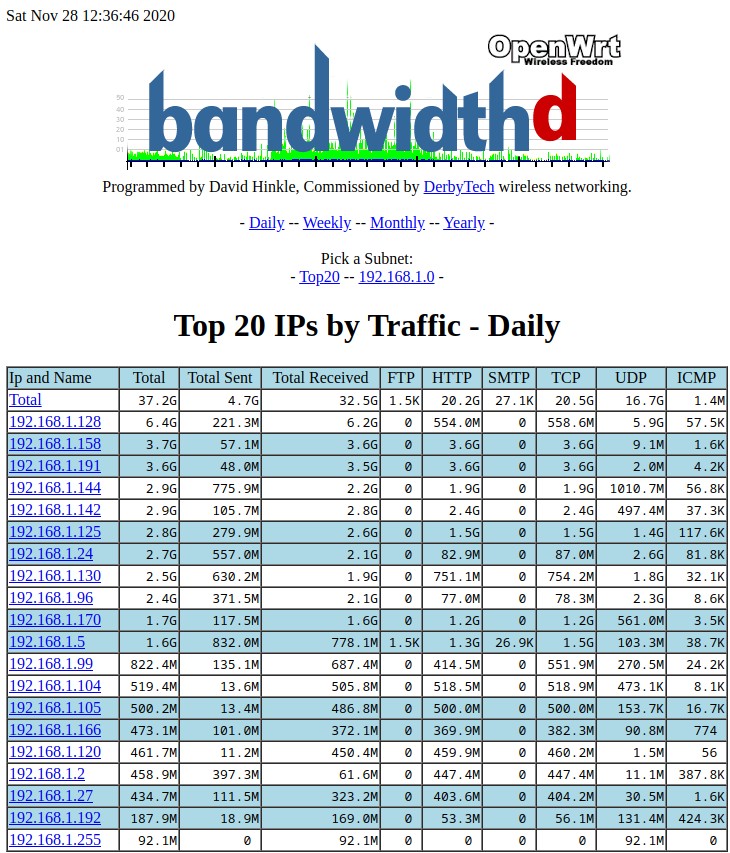

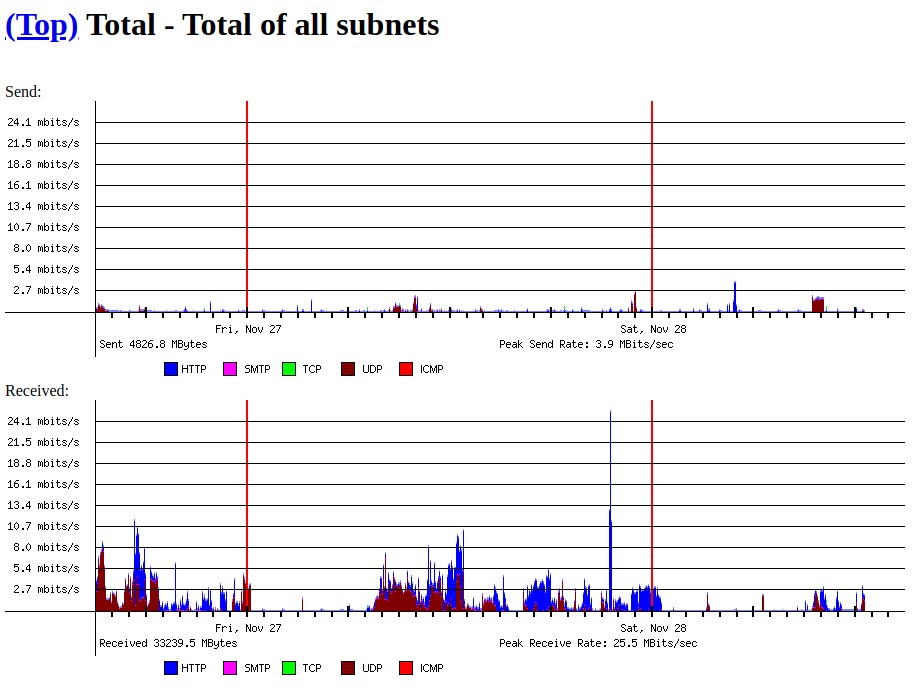

bandwidthd can easily be activated in OpenWRT's packages and provides an overview for daily, weekly, monthly and yearly traffic, as well as charts for total consumption and for each individual device.
To activate the package in OpenWRT, go to "System", "Software", "Update lists ..." and then search for bandwidthd and install it:
The statistics can then be accessed outside the router's web interface using the router's IP and /bandwidthd, e.g.: http://192.168.0.1/bandwidthd
To swap the data to an SD card, the configuration can be adjusted as follows:
vi /etc/config/bandwidthd-opkgconfig bandwidthd
...
option sqlite_filename "/mnt/sda1/bandwidthd/stats.db"
...Netlink Bandwidth Monitor
Netlink Bandwidth Monitor shows the data distribution of individual devices per month. The installation is easily done via the package management: luci-app-nlbwmon.
If a mounted USB stick is selected, the data can be stored permanently on it:
Yet Another Monior (YAMon)
YAMon is not directly available through the OpenWRT packages: A bash script is provided for installation. To store the statistic data I used a USB stick at the router on which I also put the installation script in advance: yamon???install.sh, see usage-monitoring.com/. The terrible homepage of the manufacturer was quite deterring for me in the beginning, the software itself also seems extremely old, but is not that bad and still offers a lot of statistics. The installation is then done by connecting via ssh to the router, as a prerequisite I also installed the packages for accessing the USB stick and mounted it:
opkg update && opkg install block-mount e2fsprogs kmod-fs-ext4 kmod-usb3 kmod-usb2 kmod-usb-storage darkstat
block detect > /etc/config/fstab
uci set fstab.@mount[0].enabled='1' && uci set fstab.@global[0].check_fs='1' && uci commit
/sbin/block mount
cd /mnt/sda1
./yamon347install.shThe call is then made via the router IP/yamon, e.g.: http://192.168.0.1/yamon
YAMon offers much more information, but in my opinion it is a bit more confusing than e.g. Bandwidthd.
collectd and Home Assistant
The combination of collectd, mqtt and Home Assistant allows to record the bandwidth of certain interfaces. Apart from the device tracker I haven't found a simple way to display and evaluate the bandwidth of individual devices in Home Assistant yet.
OpenWrt & Home Assistant: evaluate-visualize-react
Devices show up multiple times: random MAC address?
Mobile devices have an option for a random MAC address, which causes them to report with different MAC addresses and makes it more difficult to assign access. The option can be disabled in the WLAN settings of the individual devices by activating the "Phone MAC" setting:
