Prusa i3 based printers: improvements and adjustments

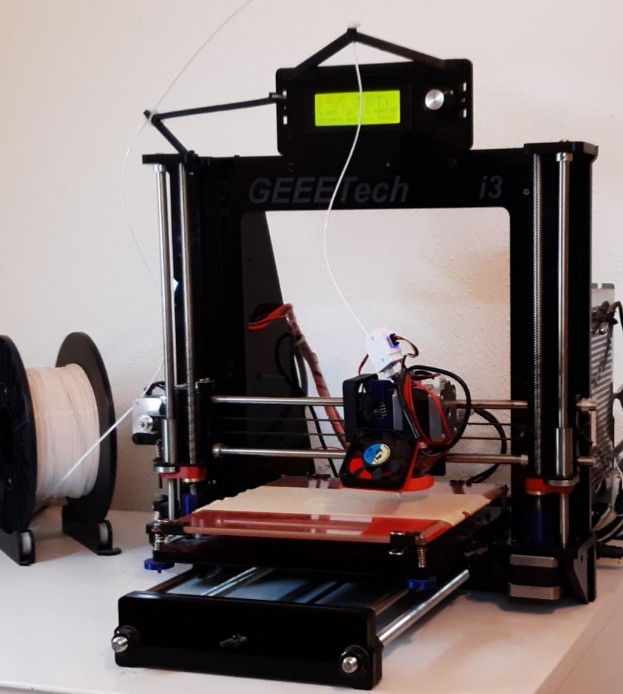

Entry-level printers, such as the GEEETech i3 pro B, are a solid starting point, but have the potential for improvement in some areas. Certain modifications can improve security and print quality, as well as functionality:

Those who want to comfortably control or monitor the printer via the browser can do so very easily with the help of a Raspberry Pi. Depending on the model, a dedicated MOSFET should possibly be used for the hot plate. A must-have is certainly a separate fan for the hotend :

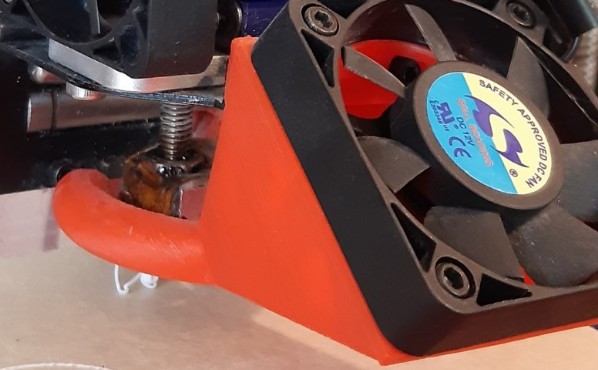

An additional fan on the hotend increases the print quality significantly when using PLA.

Safety -> MOSFET

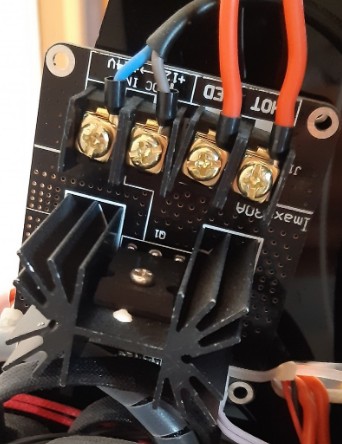

For many entry-level models, an additional MOSFET is recommended. The reason: An additional MOSFET for the heating bed relieves the controller board and reduces the load on the built-in MOSFET:

See: 3D Printer Caution Fire Hazard

Webinterface -> Raspberry

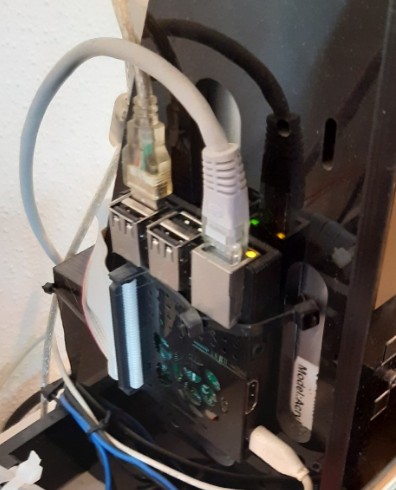

By adding a Raspberry Pi, a web interface for control and monitoring can be easily added. See: OctoPi Installation - Setup

Switch off power supply -> Relay

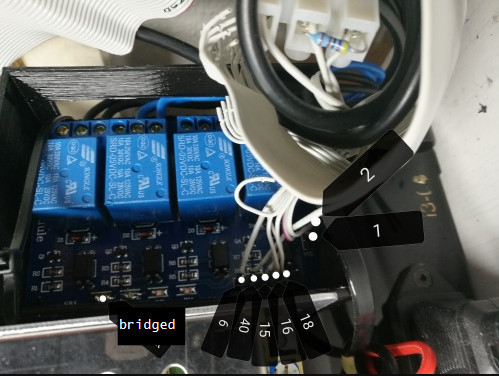

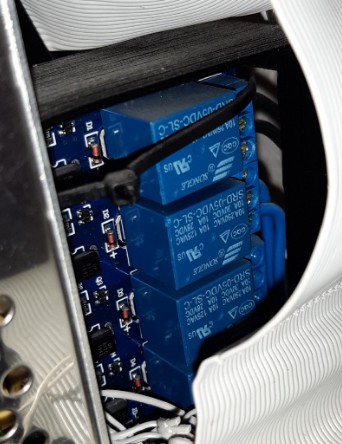

230V relays in front of the power supply allow switching on and off via web interface (OctoPrint), for this I installed additional relay.

Grooves in print -> Z Wobbling

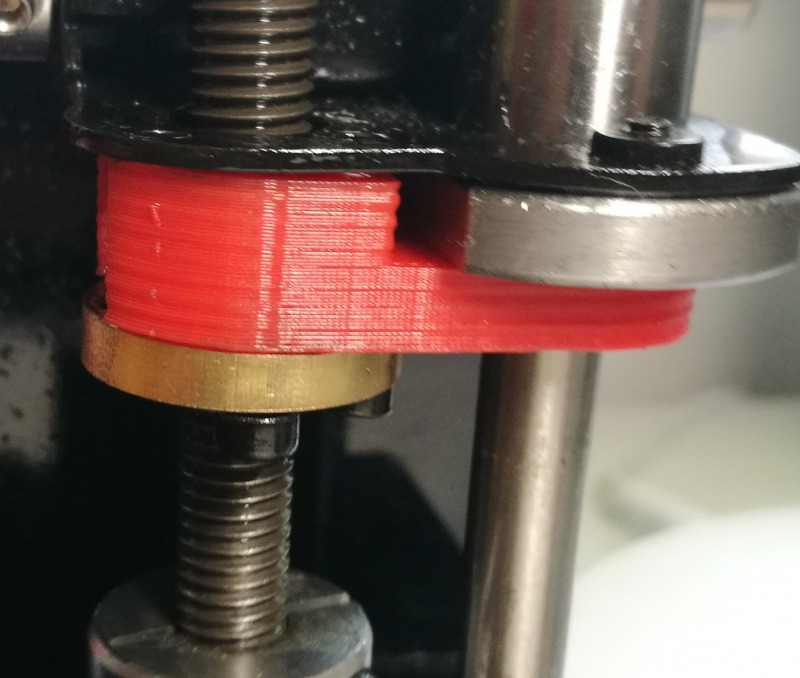

If recurring grooves appear in the print, it can be due to an unbalance of the Z-axis. With the following part the axis of the Geeetech Prusa i3 Pro B can be decoupled and the print will be much cleaner:

Accelerate Z-axis -> Spindle upgrade

The original Prusa i3 has a steeper spindle and thus creates a higher speed on the Z-axis, see: .

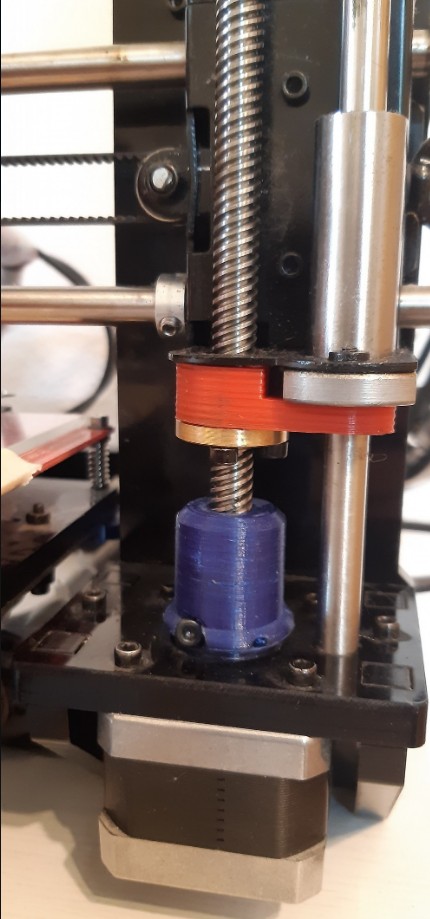

After upgrading the spindle, the Geeetech in PrusaSlicer no longer needs to adjust the speed for the Z-axis. Actually, I would have needed the correct motor shaft couplings for this as well. In the course of the upgrade, I wanted to increase the internal cross-section of the motor shaft couplings and destroyed them in the process. Putting them together provisionally, I was able to print out new ones :

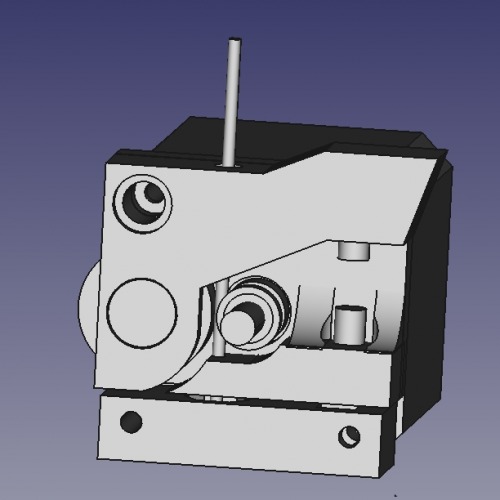

nozzle clogged - dropout -> drive modified

see: Top useful and less useful 3D models 3D: direct extruder drive printed by myself

Quiet printing -> stepper motor driver

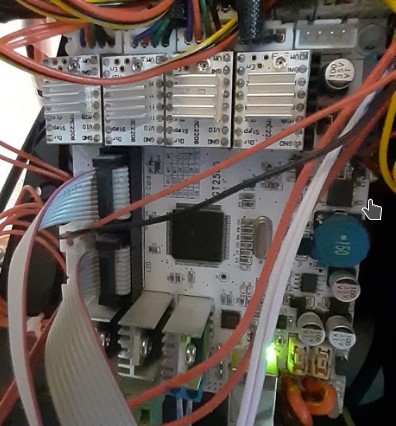

TMC2208 stepper motor driver modules silence the printer: The volume can be minimized simply by swapping the stepper drivers. The stepper motors will then hum as quiet as a whisper:

Change filament -> roll holder

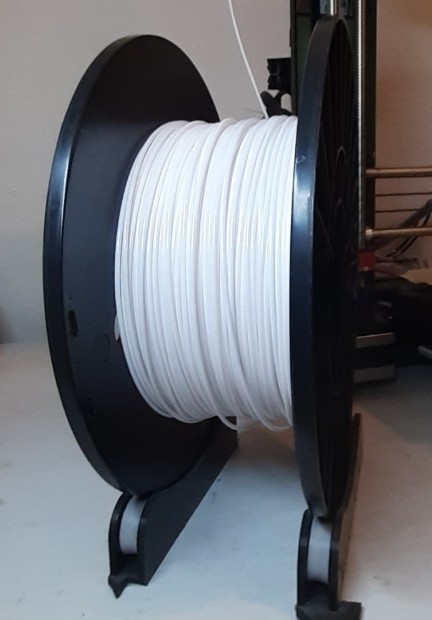

For the filament I simply have 2 rails with built-in ball bearings, so I only have to put the roll into the runners, changing the filament is thus as easy as possible:

Filament feed -> Guide

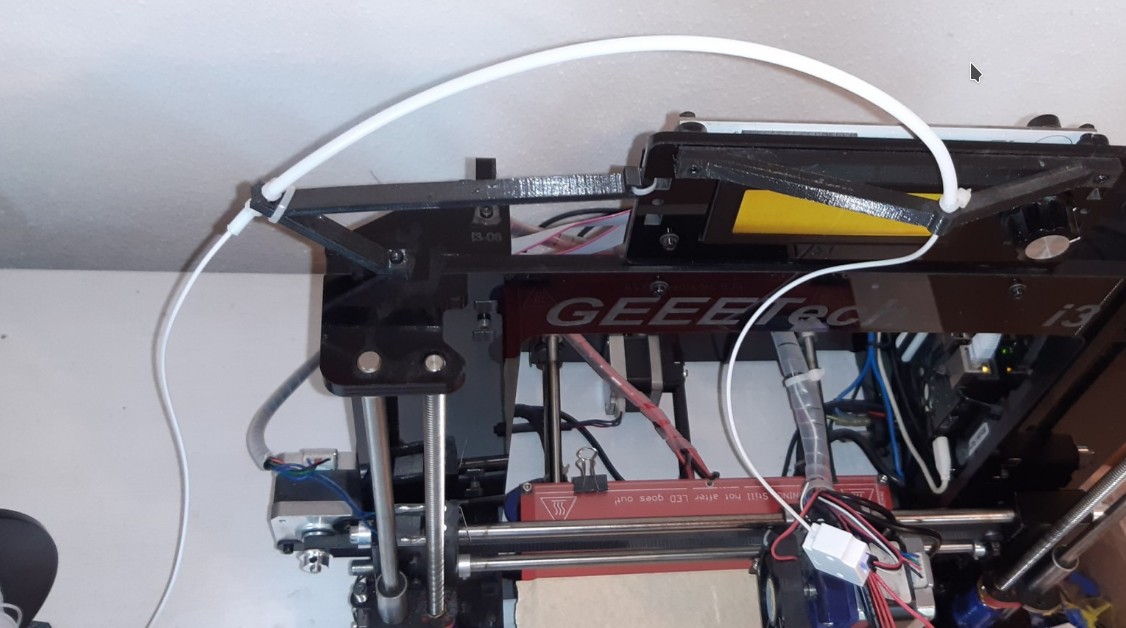

For the filament feed I use a PTFE- Teflon hose:

Filament out -> Sensor

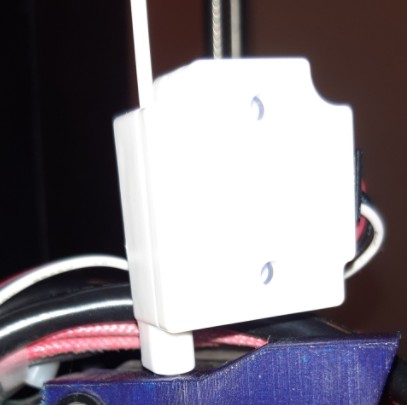

To make better use of the filament at the end, a filament sensor is recommended: If the filament runs out while printing, the print head can park itself on its side, whereupon another filament can be attached and printing can continue.


In most cases, especially entry-level models can be upgraded with simple adjustments or extensions. To do this, the 3D printer can be used to produce certain parts for the printer itself, see: Top useful and less useful 3D models
